Wifi Smart Padlock with 4.0 Bluetooth APP

Model: 40mm Padlock

Description

The wifi smart padlock with 4.0 bluetooth app has the advantages of electronic access control, enabling users to benefit from the flexibility of padlock applications. At the same time, it presents the form of an electronic padlock. This product uses a double-bead single-spring locking mechanism; it can support
existing technology platforms. No hardware changes arerequired to meet modern access control systems.
This wifi smart padlock with 4.0 bluetooth app supports three door unlocking ways, Card, Mobile Phone Bluetooth and Password.

The lock width is 40mm, the beam height size is optional(27mm/38mm).

Features

1. Designed with intuitive software & APP layout ensuring quick and easy configuration and maintenance.
2. Upgradeable without being removed from the door and designed with a quick change battery compartment. This product is truly maintenance free.
3. Available in various colour finishes, with a vast range of dimensions to ensure maximum flexibility.
4. The cylinders can be opened by emergency electronic key.
5. Anti-drilling, anti-pulling and anti-prying design.
6. Wireless firmware upgrade function.

Specifications

• Battery: 1x3V CR2 lithium, 2 years standby, 1 year using if 10 operations per day
• Low battery alarm: 80% of standard battery voltage sound and light prompts
• Indicator: Dual color green/red and buzzer
• Card: MIFARE, NFC, reading distance: < 2cm
• Bluetooth: Bluetooth 4.0, comminication distance: <10m
• Maximum number of users per door: 3000 in LMS_Professional system
• Events: 500, memory is not deleted, even if power falls
• RTC Time: Buffering typically 1 minute

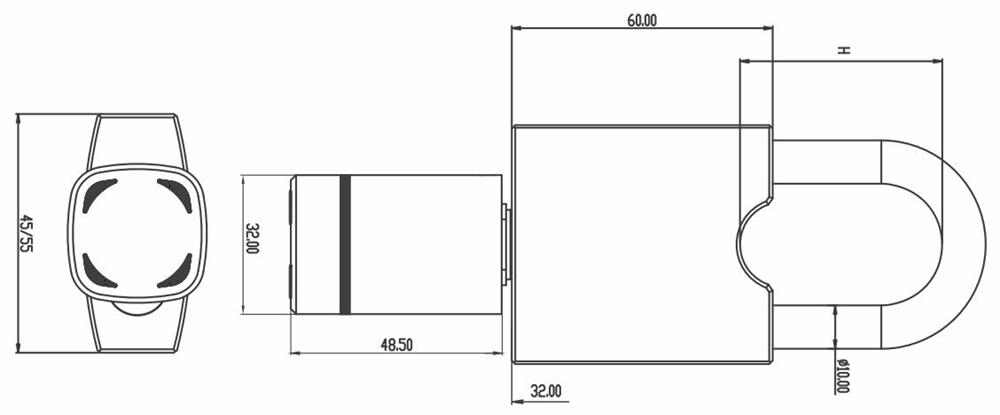

Drawing
