Project Description

European Double Cylinder

Description

Our Industrial Security Door Locking Systems can be directly updated by changing the traditional plug into electronic plug, which can complete the lock intelligent management. lt can be applied in public utilities such as Electric Power,Telecommunications, Transportation and other industries, which not only upgrade from traditional mechanical locks to intelligent locks, but also establish the public outdoor facilities smart management system.

Rayoncis is closely working with a number of international and domestic partners, and the products and smart management system haven been in service in many different industries and different countries.
passive electronic lock use
Taking its own software as backstage, the Industrial Security Door Locking Systems cooperates with encoder to complete the keys and locks setting. When a key is inserted into lock, the power is supplied, meanwhile the verified information in the key issubmitted, the lock microprocessor and key chips will verify each other to achieve unlock purpose, at the same time, the information such as the lock time, the event can be uploaded to the key.

How does it work?

key and lock communication

  1. Key is inserted to provide power for the lock
  2. The lock sends encrypted data to wake up the key
  3. The key answers with encrypted code to the lock
  4. The lock returns confirmation command to the key
  5. The key sends (open, get list…) command to lock
  6.  Lock opens
Features
  1. With no batteries and maintenance-free.
  2. Opening permission can be set after installation according to individual demand.
  3. The key adopt digital encryption authentication technology which cannot be copied.
  4. The records can be tracked and easy to extend.
  5. Support multiple management requirements and management pattern extensions.
  6. Various methods to deal with the key lost.
  7. Can realize one key management and information traceability.
  8. Strong corrosion resistance, salt spray test can resist more than 96h.
  9. Electrostatic protection: 15KV non-contact electrostatic or 8KV contact electrostatic.

passive electronic lock features

Specifications
  • Material: Plug (Hb59-1), Turning Cam ( Steel)
  • Surface Treatment: Chrome Plated, Nickel Plated
  • Working Environment: Temperature (-40ºC~+80ºC)  Humidity (20%~97%)
  • Anti-Riot Capacity: Anti-technical open, anti-riot open
  • Applied Range: Can replace the metal/wooden door Euro profile mechanical lock directly
  • Lifespan: Opening more than 100000 times
  • IP Grade: IP68

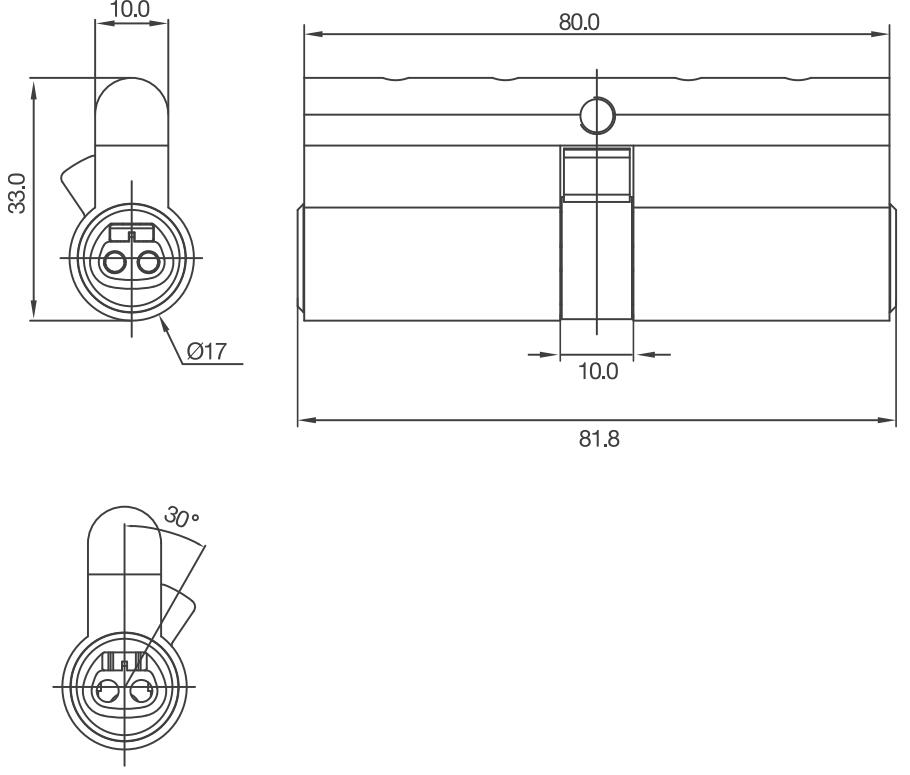

Drawing

Euro Double Cylinder Drawing

Test
The above strict tests assure our best quality and reputation
Certificates Industry Test IP Test Fire Test Anti-Corrosion Test Life Test
CE, RoHS EN 15684 IP68 EN 1634 30 Minutes Salt Spray 96 Hours 1000,000 Full Cycles
